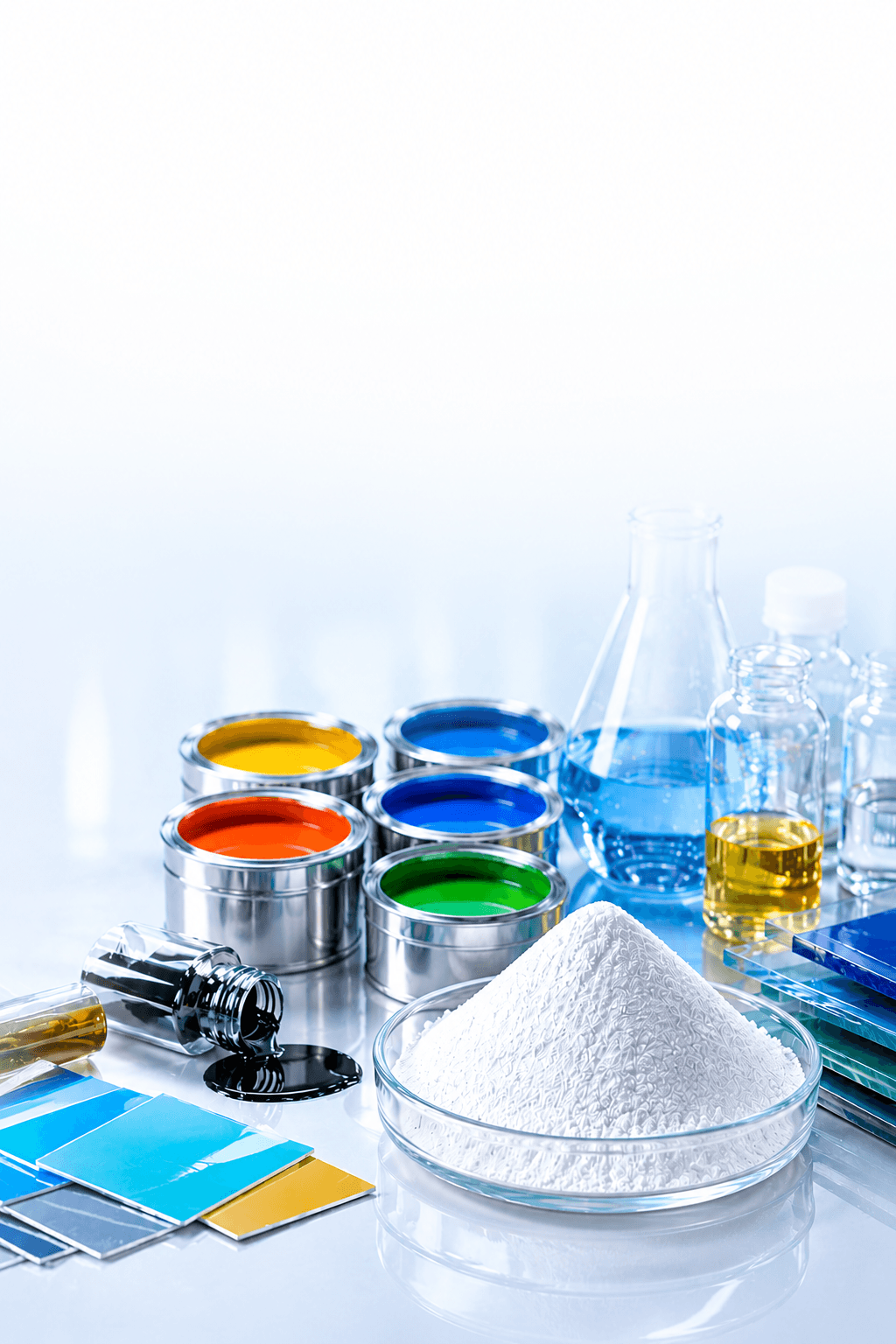

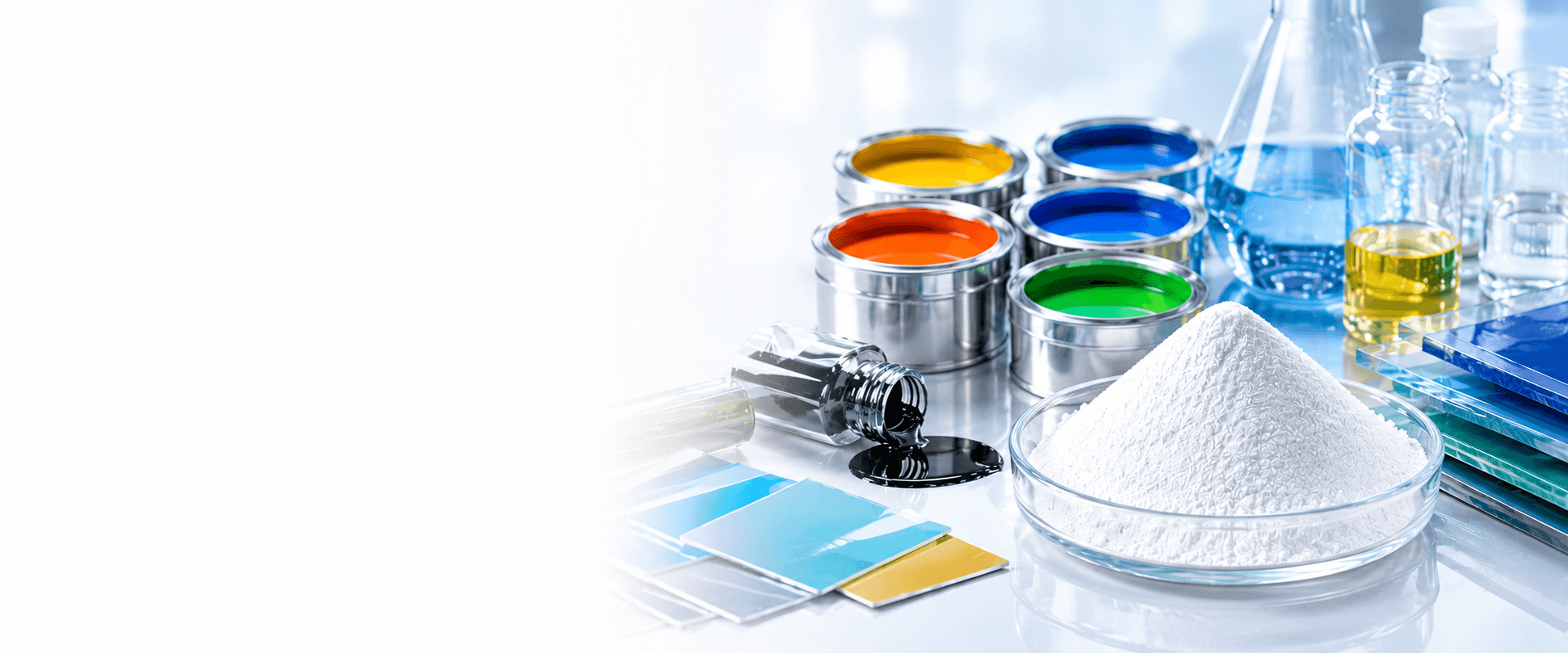

Micronized Pentaerythritol for Coatings, Inks & Resin Systems
The carbon source engineered for smooth films, uniform dispersion, and reliable fire performance in intumescent coatings and functional inks.
Ultra-fine PSD
(D50 2-10um)
Low water
sensitivity
High char
integrity
Resin
compatibility
The Dispersion Challenge. Solved.
Conventional Pentaerythritol
Agglomeration
Irregular particles lead to agglomeration and poor dispersion.
Poor Film Uniformity
Uneven distribution causes defects, pinholes and inconsistent appearance.
High Water Sensitivity
High hygroscopicity affects storage stability and coating performance.
Micronized Pentaerythritol (PE)

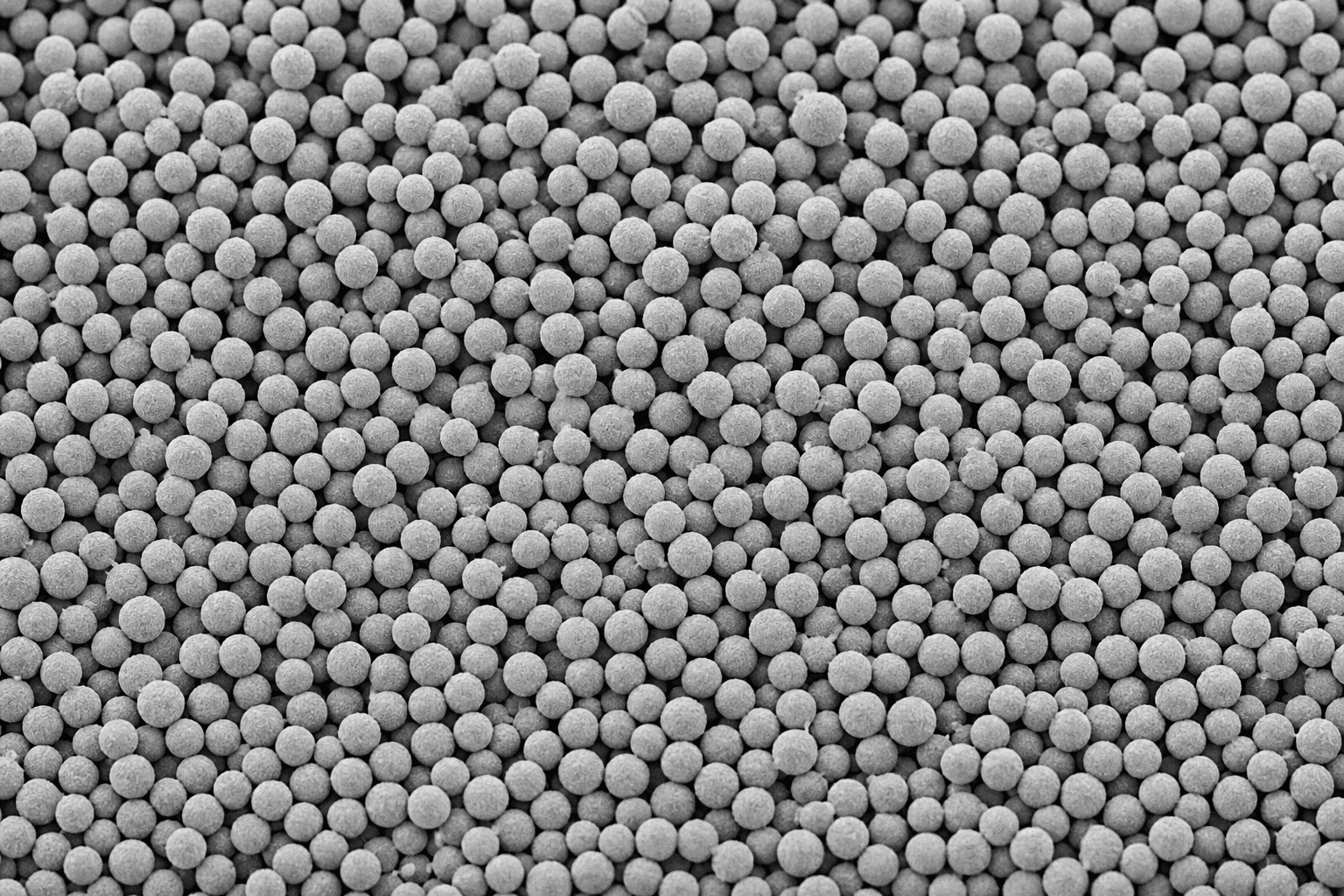

Narrow PSD
Tight particle size distribution for minimal agglomeration.
Rapid, Uniform Dispersion
Easily dispersed for smooth films and consistent performance.
Improved Storage Stability
Low water sensitivity ensures reliable processing and storage.
Engineered for Performance in Real Applications

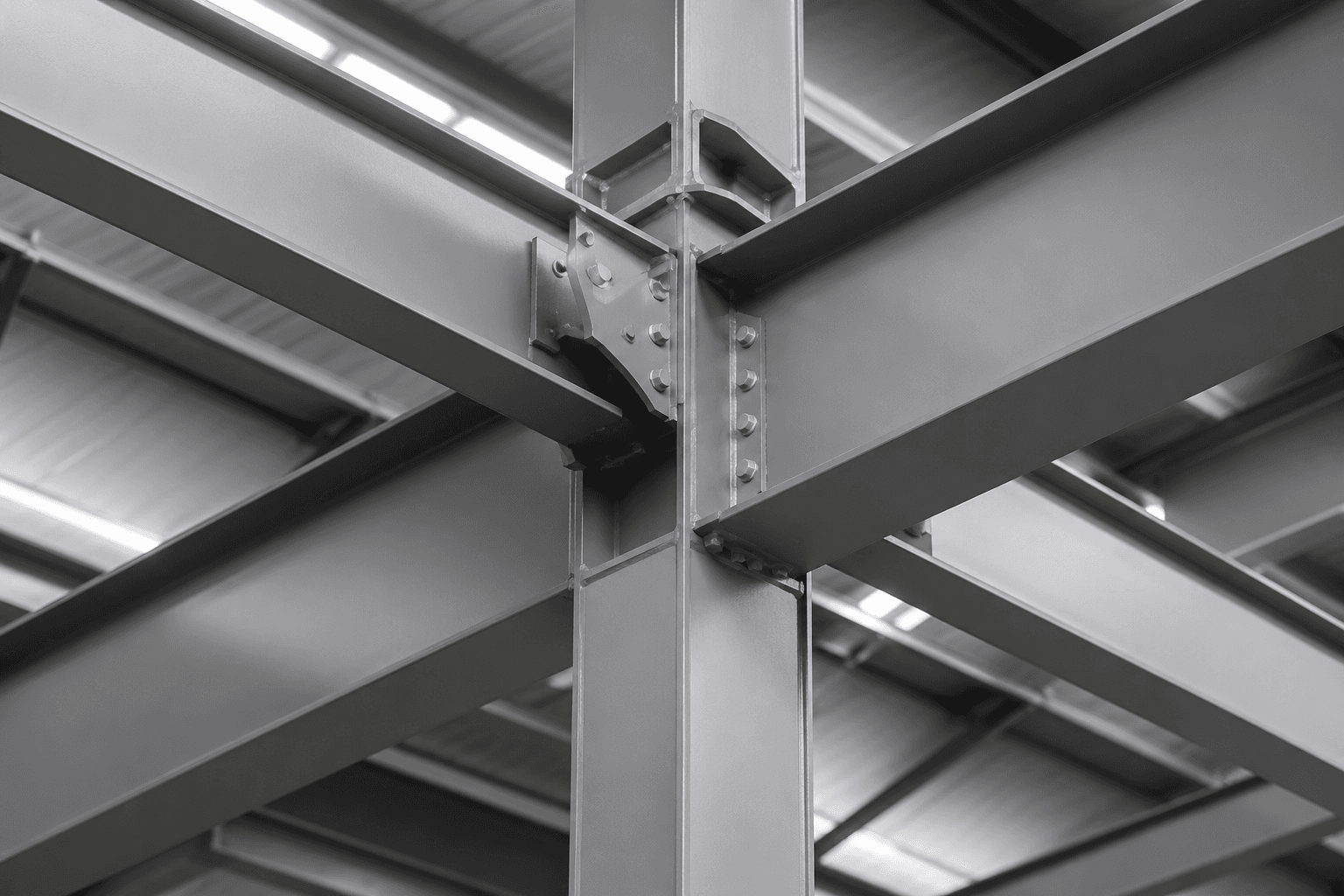

1. Intumescent Fire-Resistant Coatings
Mechanism
Acts as an effective carbon source with APP/Melamine, promoting the formation of expanded, cohesive char layers to insulate and protect the substrate.
Advantages
- Ultra-fine particles deliver uniform dispersion and compact formulation.
- Low water sensitivity ensures stable processing and long term storage.
- High char yield and integrity for superior fire protection.
Typical Applications
- Steel structure coatings
- Cable fire-protective coatings
- Decorative fire-retardant coatings
Compatible Resin Systems
Epoxy, Acrylic, Polyester, Polyurethane, Alkyd
2. Flame-Retardant Inks
Mechanism
Works synergistically with flame retardants to enhance char formation and reduce heat release during combustion.
Advantages
- Ultra-fine particles for no screen clogging and excellent printability.
- Good dispersion without affecting gloss, color or adhesion.
- Low hygroscopicity for stable viscosity and storage.
Typical Applications
- Cable marking inks
- Textile printing inks
- Decorative and outdoor inks
Compatible Resin Systems
Acrylic, Polyurethane, Epoxy, NC, UV-curable
3. Resin Formulations
Mechanism
Serves as an efficient carbon source with APP/Melamine systems to improve char stability and flame retardancy of polymers.
Advantages
- Compatible with a wide range of polar and non-polar resins.
- Uniform dispersion for consistent performance.
- Thermal stability to support high processing temperatures.
Typical Applications
- Epoxy resin systems
- Acrylic resin systems
- Polyurethane resin systems
Compatible Resin Systems
Epoxy, Acrylic, Polyurethane, Polyester, Polyolefin
Formulation Compatibility Matrix
Water-based Acrylic/PUSolvent-based Epoxy/Polyester
UV/EB Curable Systems
Solventless / High Solids SystemsWater-based Acrylic/PU
- Challenges
- Agglomeration, sedimentation, viscosity issues
- Micronized PER Solutions
- Narrow PSD, low hygroscopicity, stable storage
- Performance Metrics
- Storage stability viscosity change <=10% over 7 days
Solvent-based Epoxy/Polyester
- Challenges
- Polarity mismatch, dispersion problems
- Micronized PER Solutions
- Surface-modified for uniform dispersion, no adhesion impact
- Performance Metrics
- Coating adhesion grade 0-1 level
UV/EB Curable Systems
- Challenges
- Coarse particles causing defects, uneven curing
- Micronized PER Solutions
- Ultra-fine particles, no light interference, defect-free curing
- Performance Metrics
- No pinholes / fish eyes after cure
Solventless / High Solids Systems
- Challenges
- Dispersion difficulty in high viscosity, agglomeration
- Micronized PER Solutions
- High dispersibility, low addition rate, efficient carbon formation
- Performance Metrics
- Gloss retention >=90%
Key Performance Data & Test Cases
Intumescent Fire-Resistant Coatings
22 -> 32
LOI Improvement
(when adding micronized PER)
0 Grade
Coating Adhesion
(Cross-hatch Test)
Flame-Retardant Inks
No Clogging
Screen Printing Compatibility
>= 95%
Print Clarity
No Yellowing
Thermal Stability at 150°C / 30 min
Resin Formulations
35%
Char Formation Rate
(with APP+PER System)
>= 250°C
Thermal Decomposition Temperature
Preserving Processing Window
Recommended Loading Levels by Application
Intumescent Fire-Resistant Coatings
- Recommended Loading
- 8 - 15%
- Recommended APP Ratio
- 1 : 2 - 1 : 3
- Notes
- Water / solvent universal
Screen Printing Flame-Retardant Inks
- Recommended Loading
- 5 - 10%
- Recommended APP Ratio
- 1 : 2
- Notes
- Doesn't affect print flow
Epoxy Resin FR Modification
- Recommended Loading
- 10 - 20%
- Recommended APP Ratio
- 1 : 2.5
- Notes
- No precipitation, no cure interference
Our Partners
Trusted performance across industries

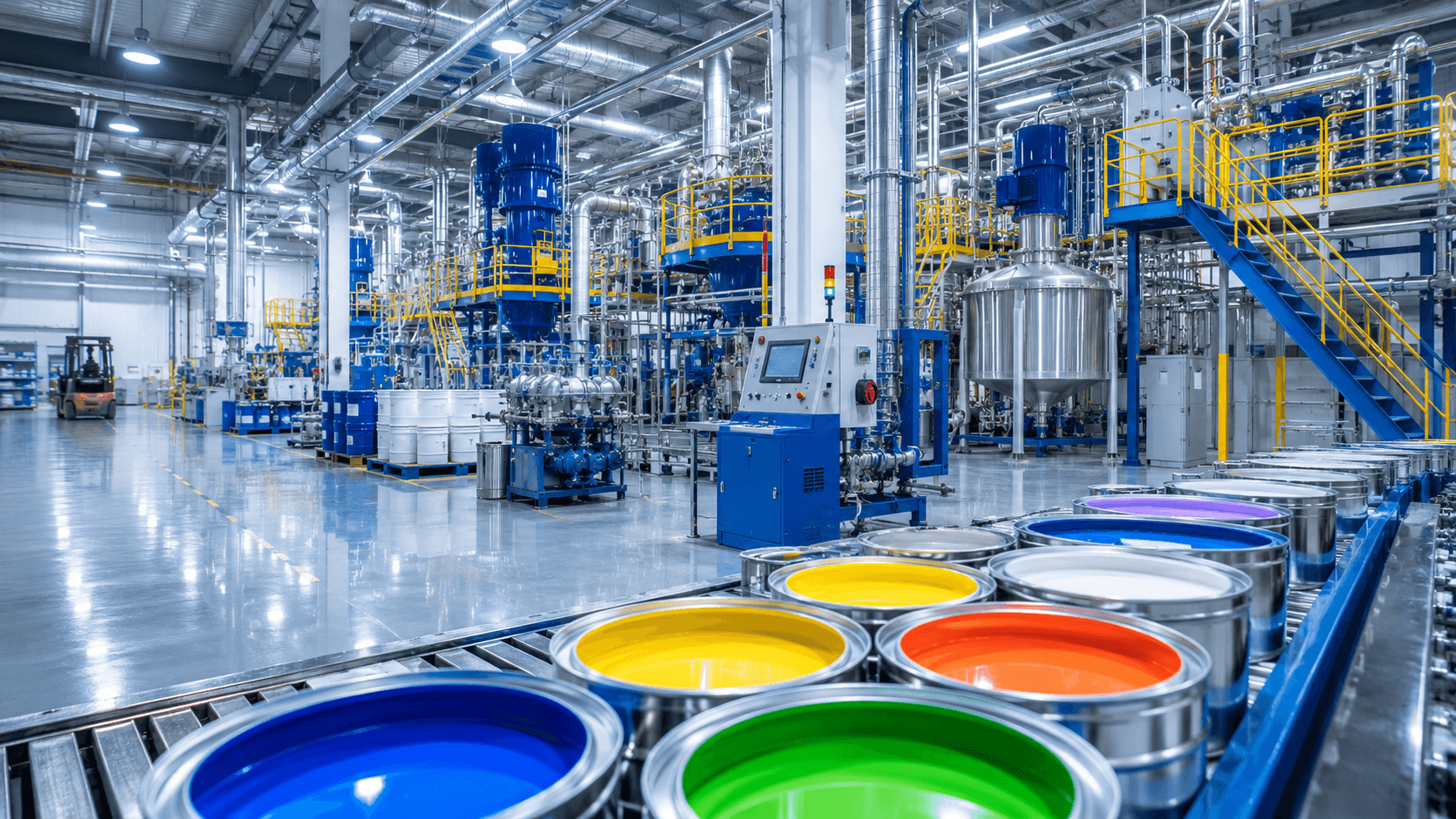

Coating Factory
Uniform micronized PER ensures stable dispersion, consistent flame retardancy, and smooth, defect-free coatings batch after batch.

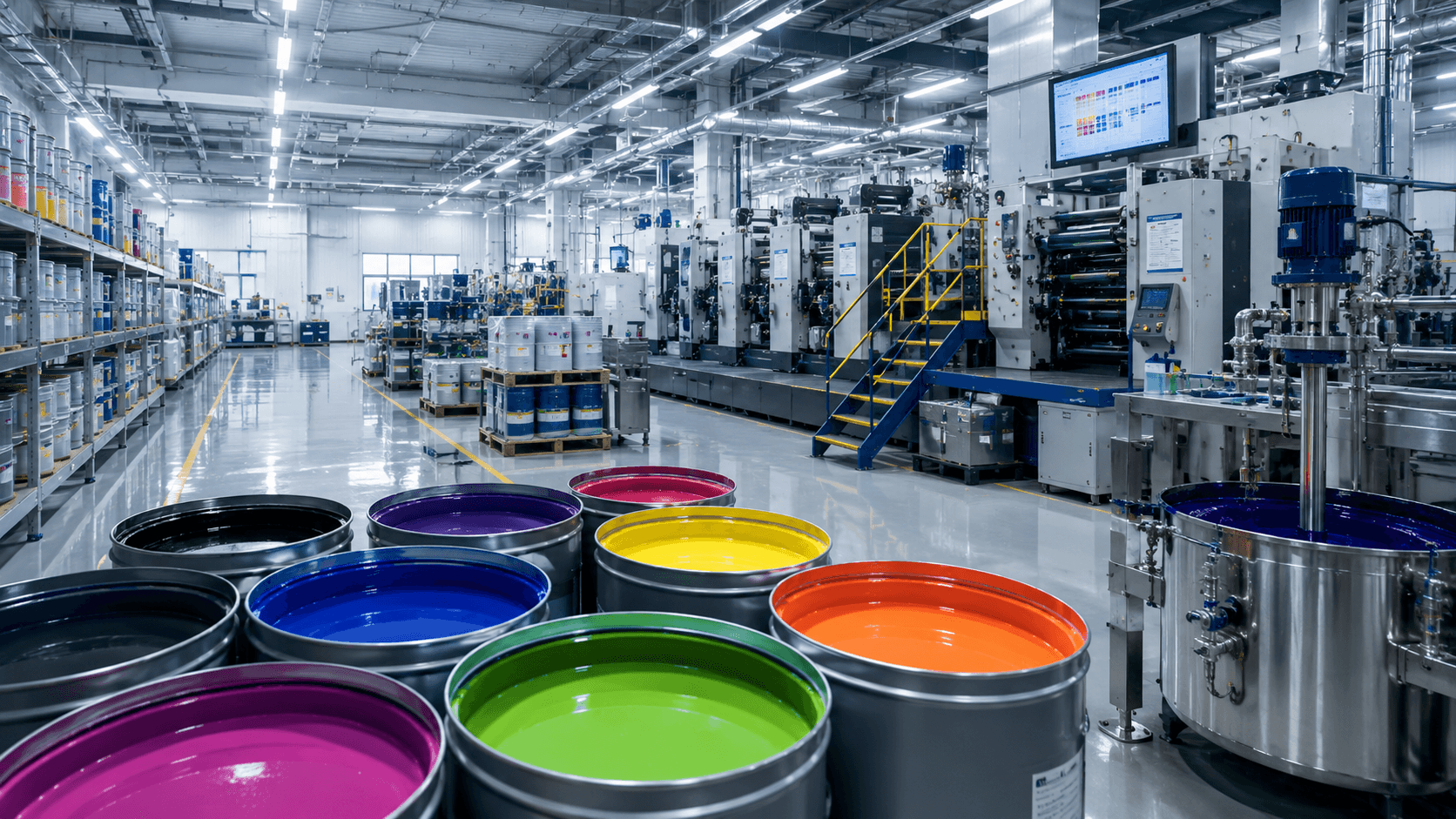

Ink Manufacturer
Fine particles prevent screen clogging, maintain print clarity, and deliver long-lasting flame resistance in decorative and industrial inks.

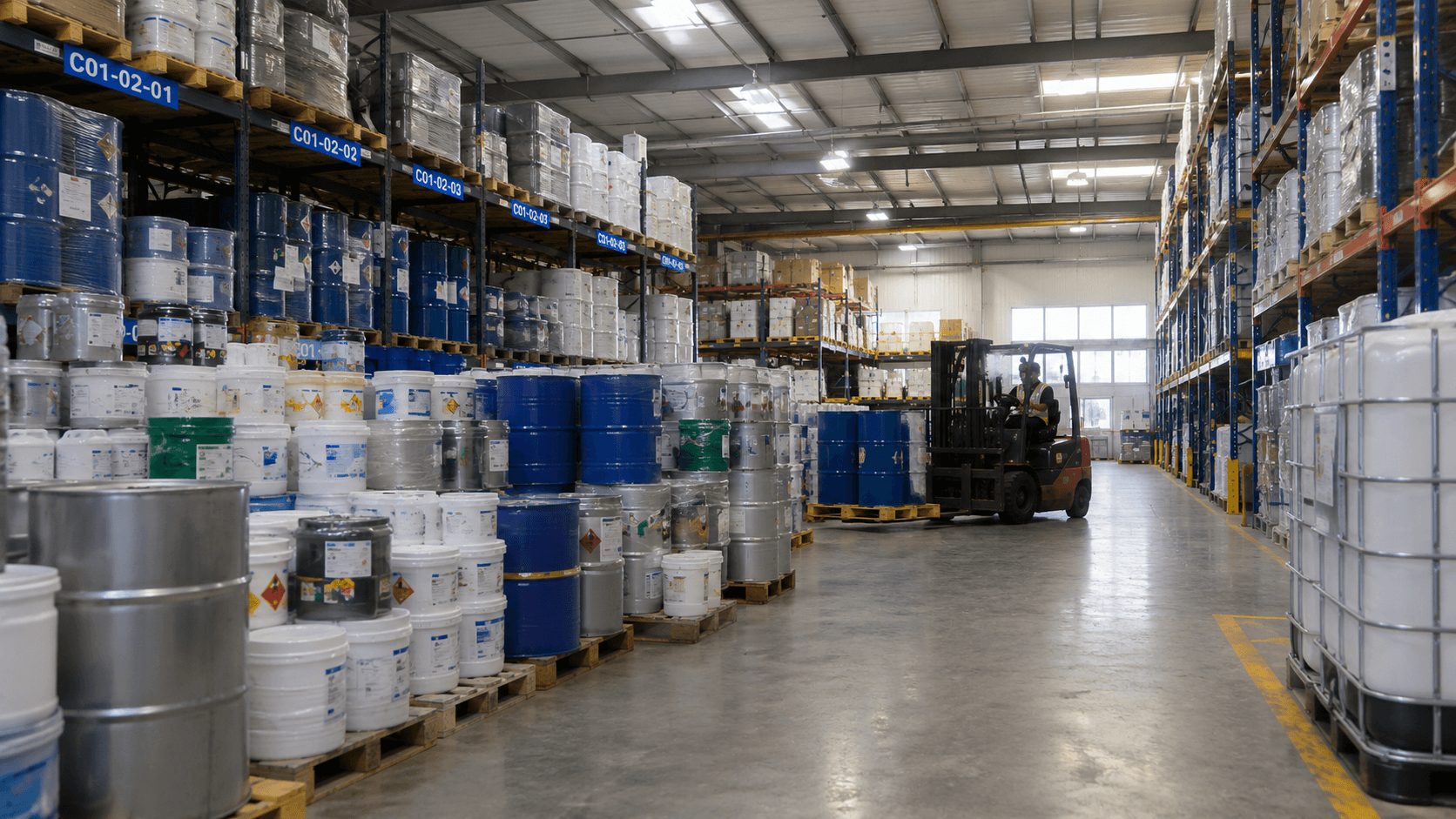

Chemical Distributor
Our micronized PER works across acrylic, epoxy, PU, and UV systems, offering broad compatibility and reliable quality for your customers.
Inquiry Support
Tell Us Your Needs. We'll Get Back Within 12 Hours
Share your application and performance targets. Our technical team will provide the most suitable grade recommendation and support.
12-hour response promise (working days)
Application-focused recommendations
Confidentiality assured
