1

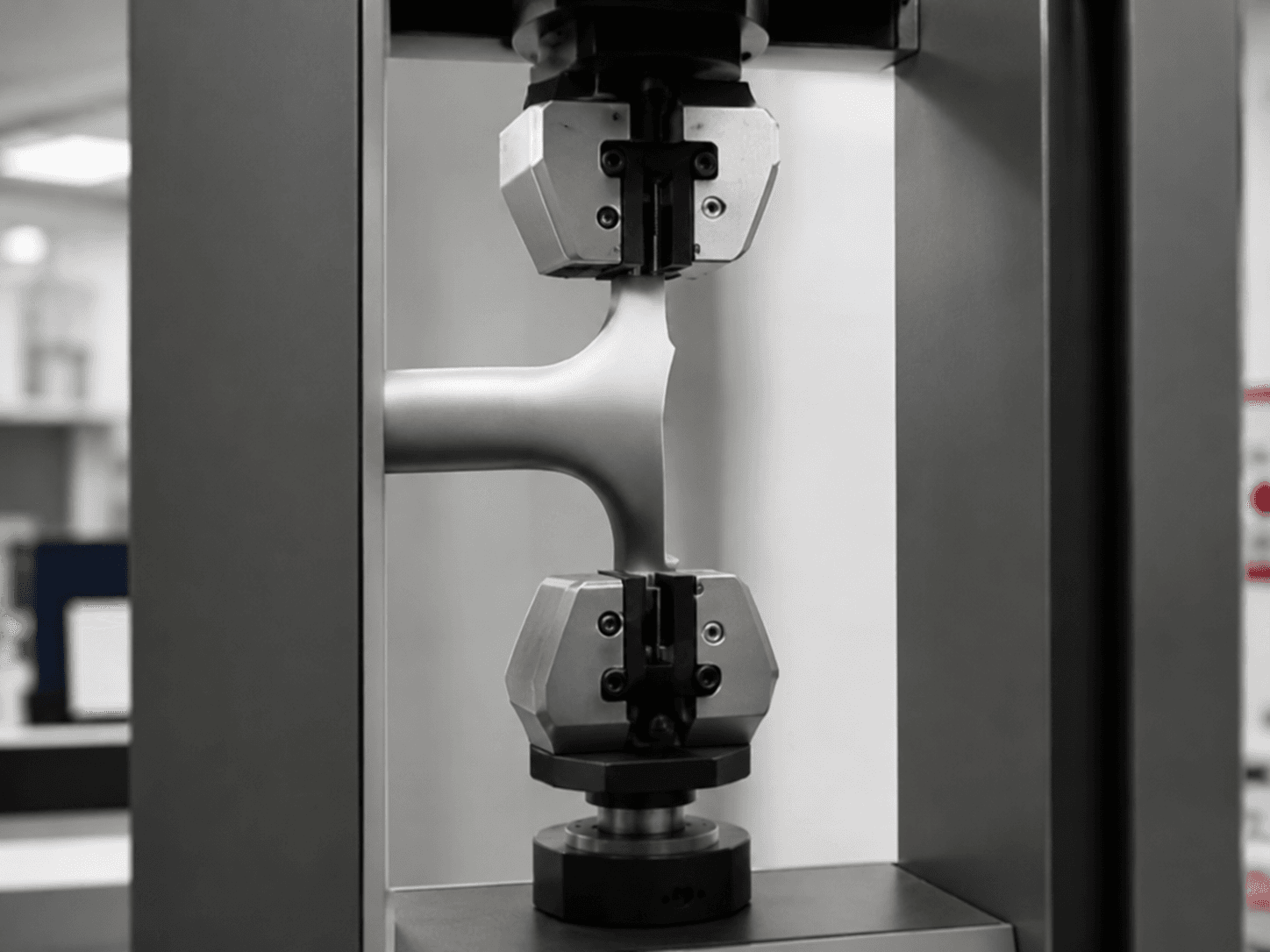

Preserved Mechanical Properties
Maintains high tensile strength and impact performance even at high loading.
Typical retention: >90% tensile strength, >80% impact strength
Pentaerythritol & Dipentaerythritol
UL94 V-0 Performance. Strength That Lasts.

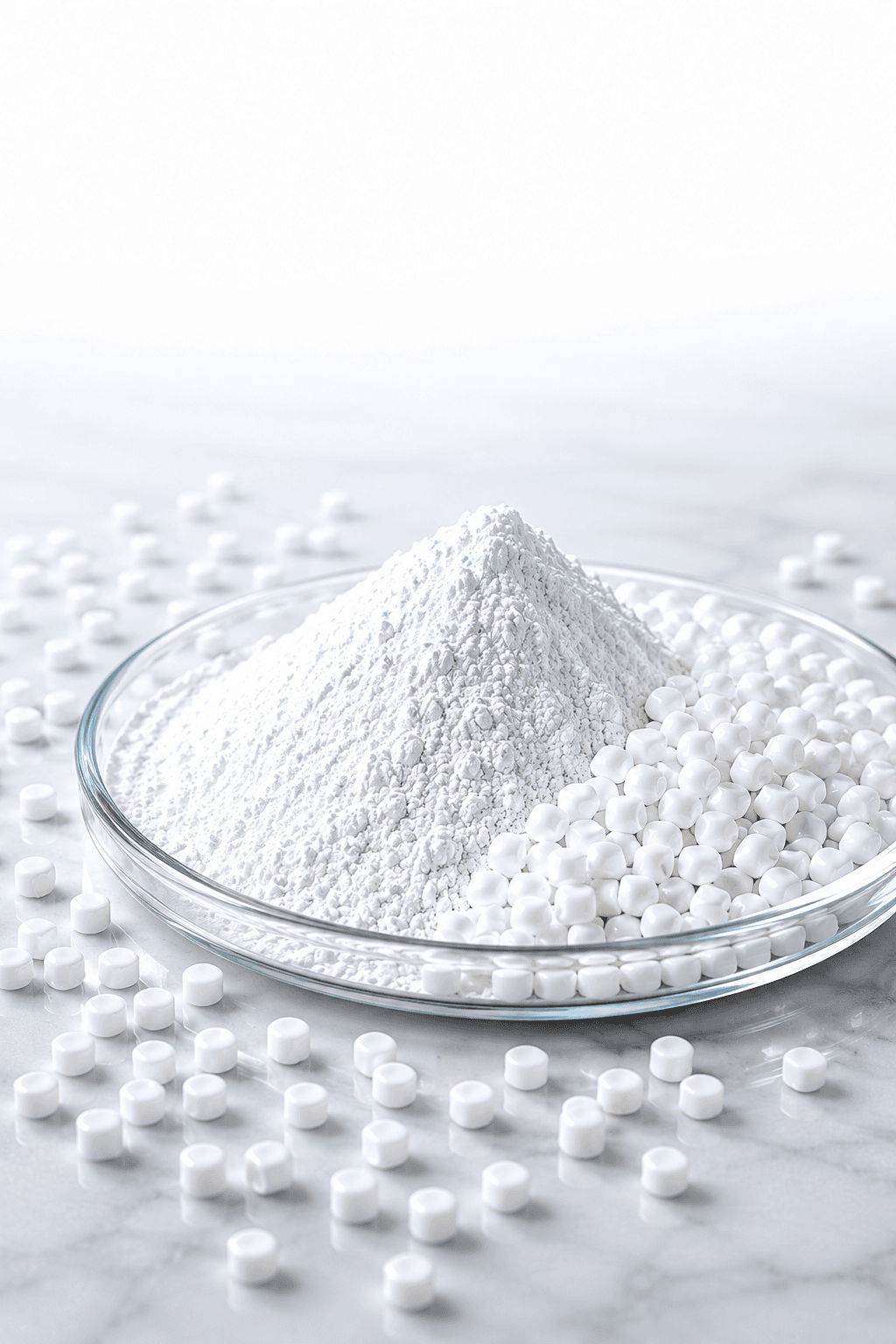

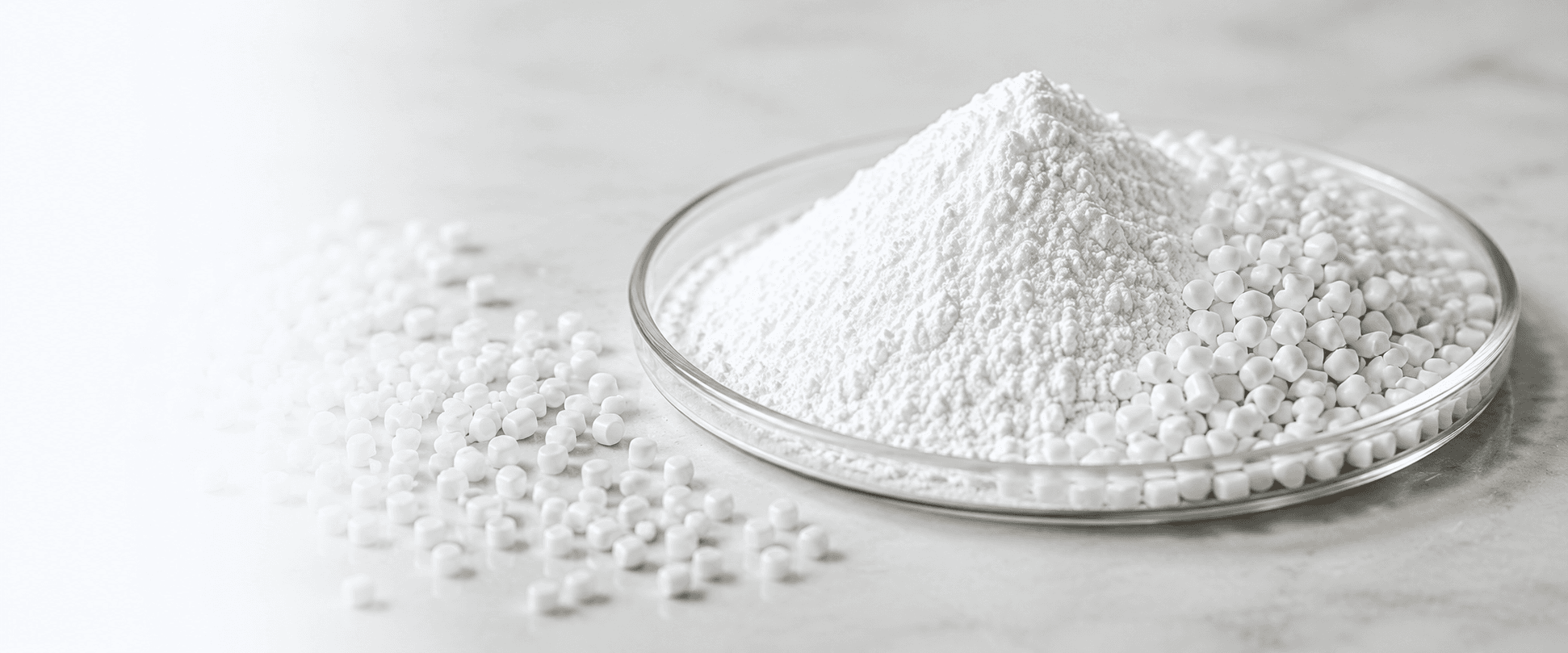

Micronized Pentaerythritol and Dipentaerythritol for flame-retardant plastic compounds with preserved mechanical properties.
UL94
V-0
Flame Rating
High LOI
Up to 32%
Enhanced Flame Retardancy
Preserved
Strength
Outstanding Mechanical Performance
The Dispersion Challenge
Agglomeration weakens performance.
Particle size makes the difference.
Poor dispersion leads to stress concentration, surface defects, and reduced mechanical and flame-retardant performance.

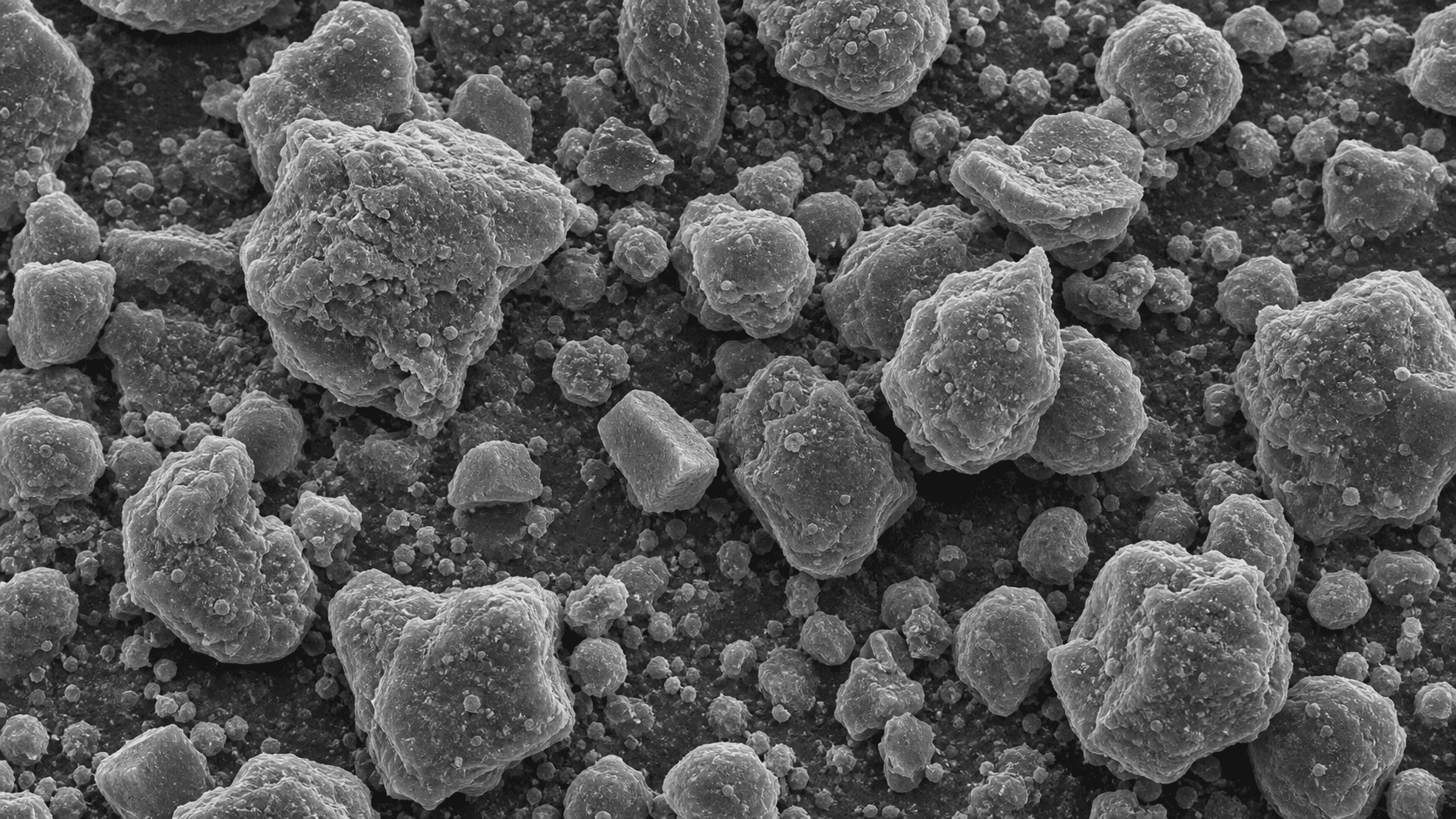

Agglomerated PE
D50 ~ 50-150 um
Irregular agglomerates, poor dispersion
Poor dispersionWeak pointsProperty loss

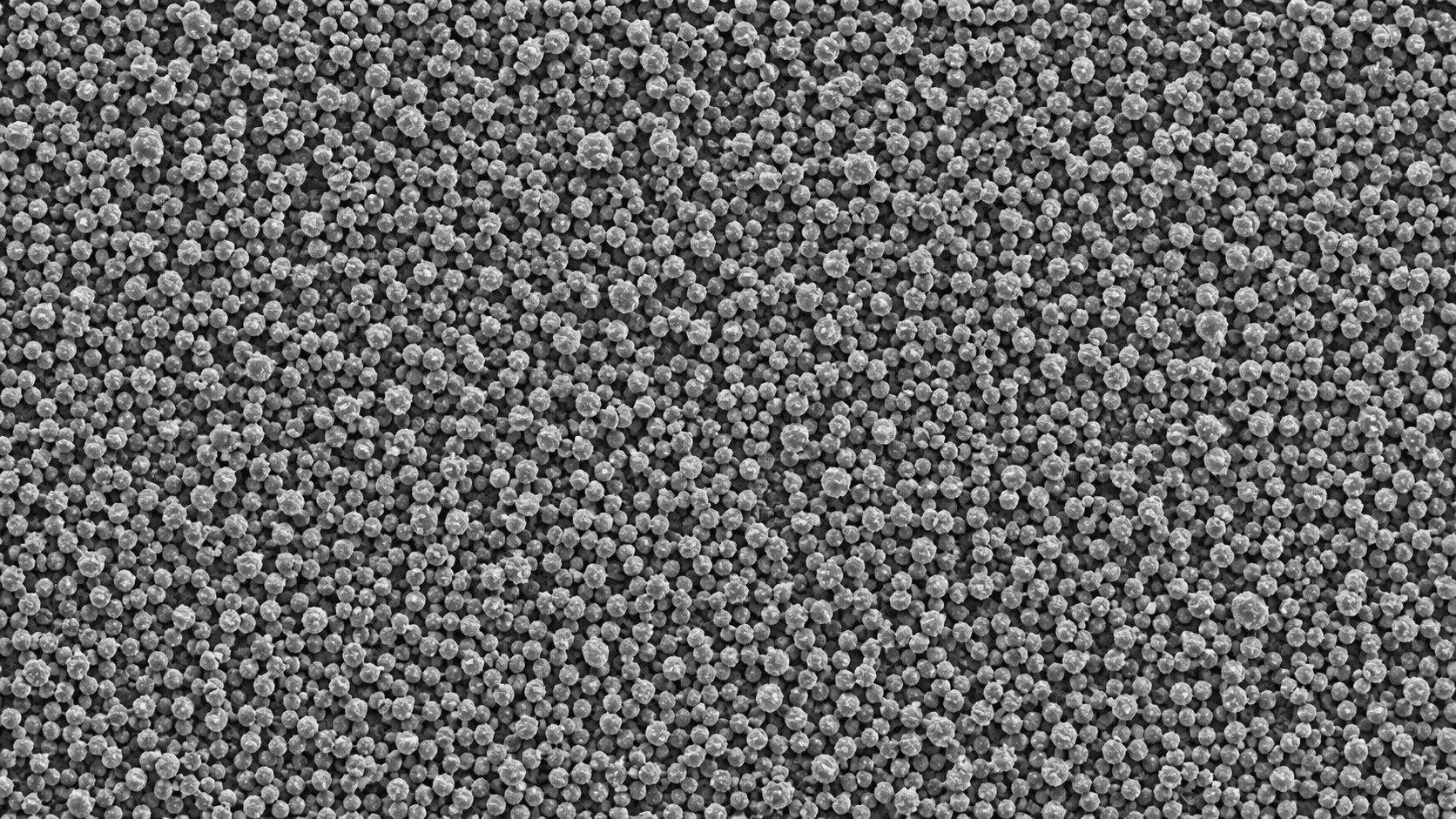

Micronized PE
D50 ~ 2-10 um
Uniform particles, excellent dispersion
Excellent dispersionStrong interfaceOptimal performance
Intumescent Flame-Retardant Mechanism
Synergistic Formula. Superior Protection.
Pentaerythritol (PER) works in synergy with APP and MEL to form a stable, intumescent carbon layer, effectively insulating the substrate and inhibiting heat and mass transfer.
APP
(Acid Source)
Decomposes to generate polyphosphoric acid under heat.
Key Component
Pentaerythritol (PER)
(Carbon-Forming Agent)
Dehydrates and forms a carbonaceous backbone, providing structural integrity to the char layer.

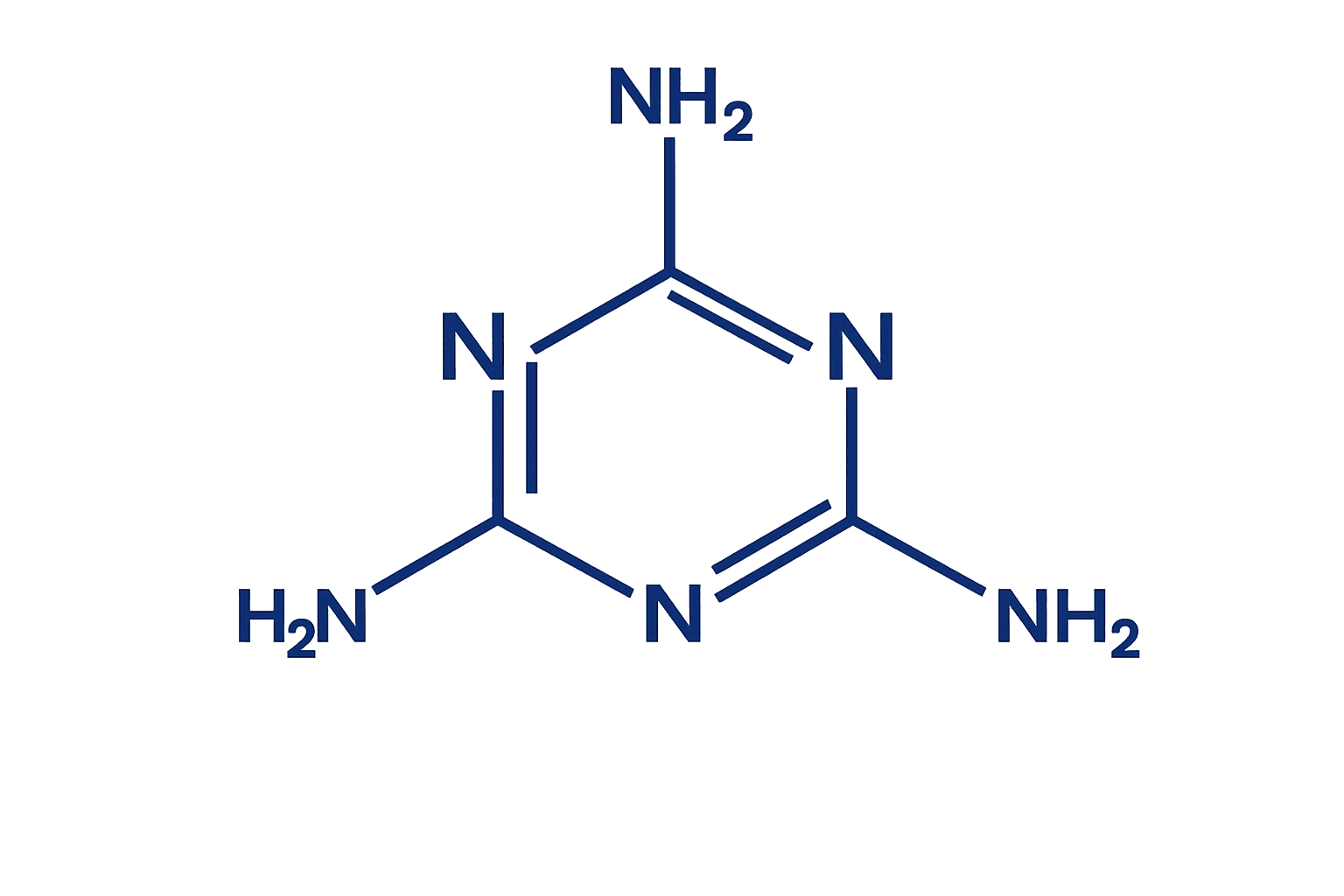

MEL
(Blowing Agent)
Releases non-flammable gases to expand the carbon layer.

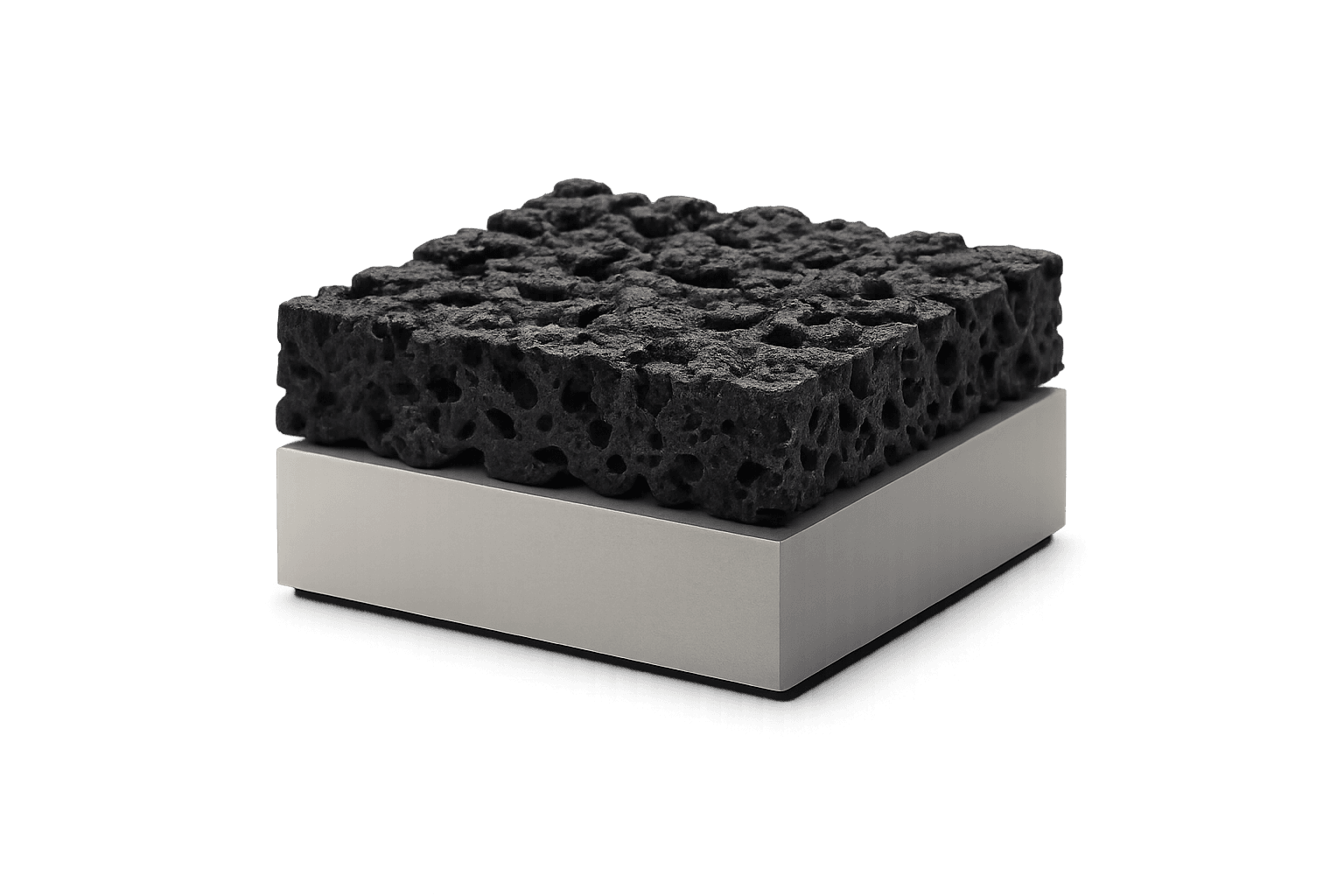

Efficient Intumescent Carbon Layer
Dense, continuous char layer is formed to protect the underlying polymer.
Heating
Acid formation
(from APP)
Dehydration & Carbonization
(from PER)
Blowing & Expansion
(from MEL)
Intumescent Char Layer
Four Core Benefits
Engineered for performance.
Proven in compounding.
2

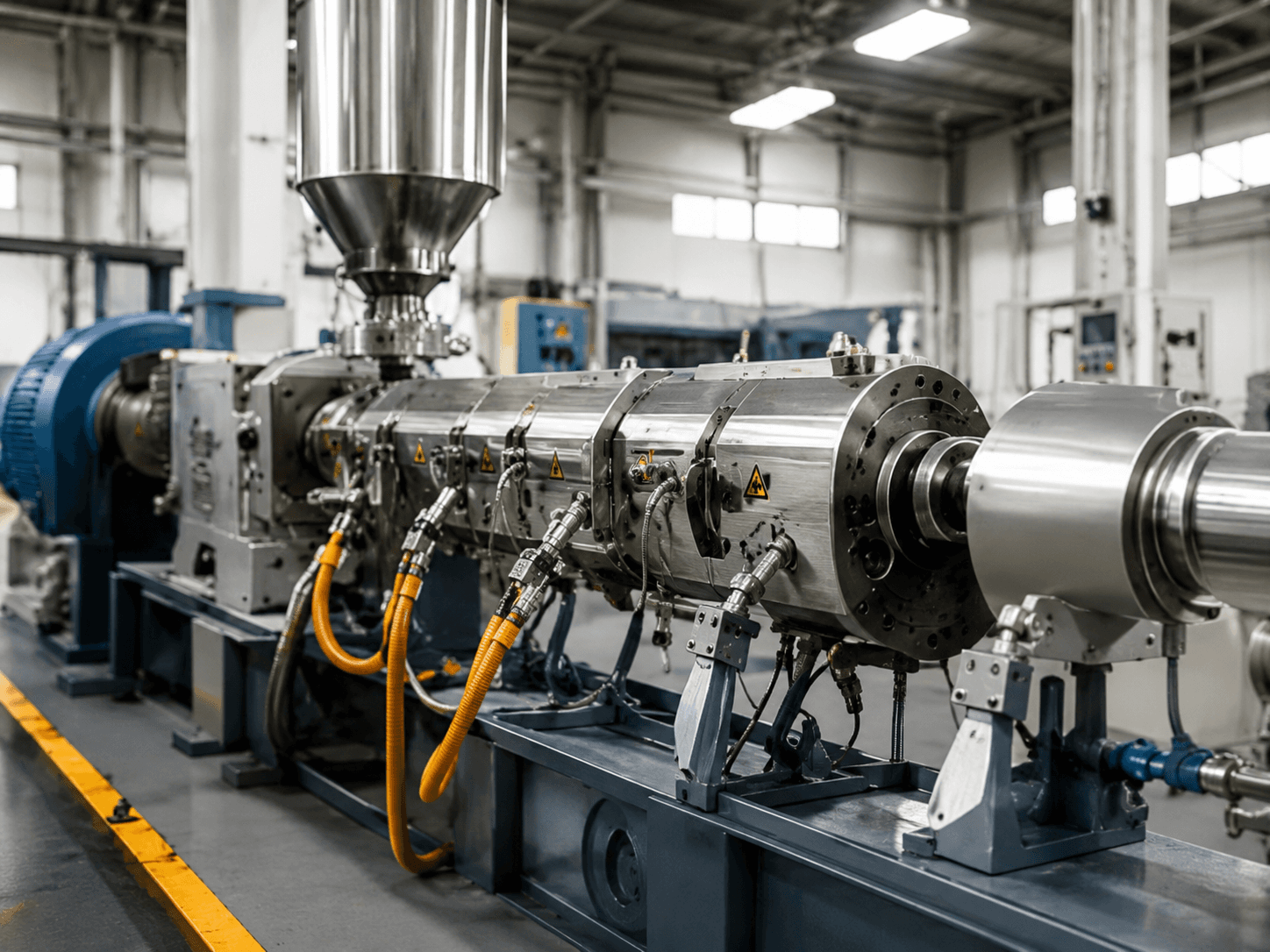

High Thermal Stability
Withstands high processing temperatures without degradation.
Processing stability up to 280-300 C (depending on grade)
3
Anti-Blooming / Low Exudation
Excellent compatibility and low hygroscopicity minimize blooming and surface defects.
Cleaner surfaces, better aesthetics, fewer rejects.
4

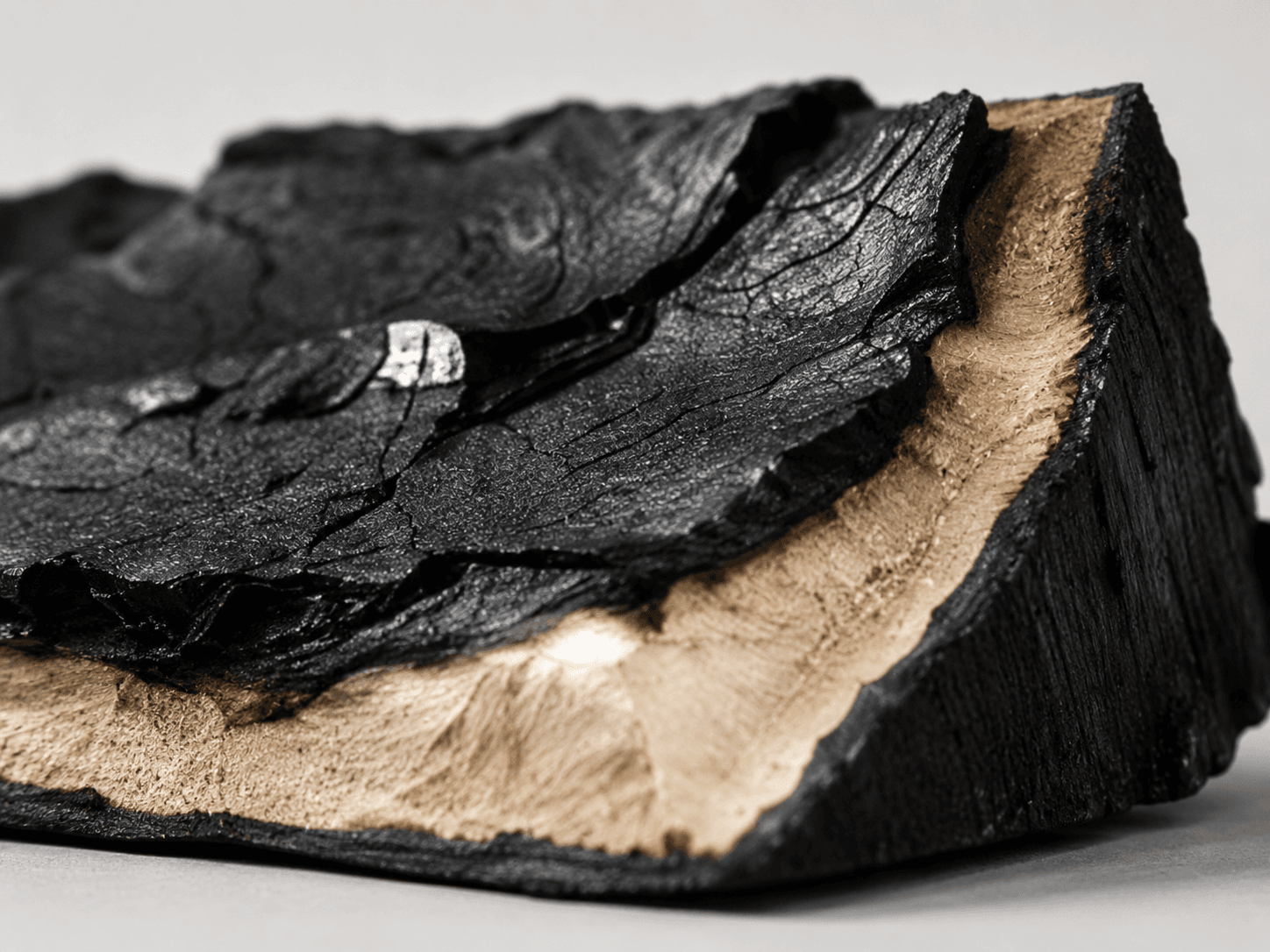

Intact Char Formation
Promotes cohesive char layer that insulates and protects the underlying polymer.
Improved flame retardancy and fire safety.
Polymer Compatibility Guide
Two optimized solutions.
Matching your polymer and performance needs.

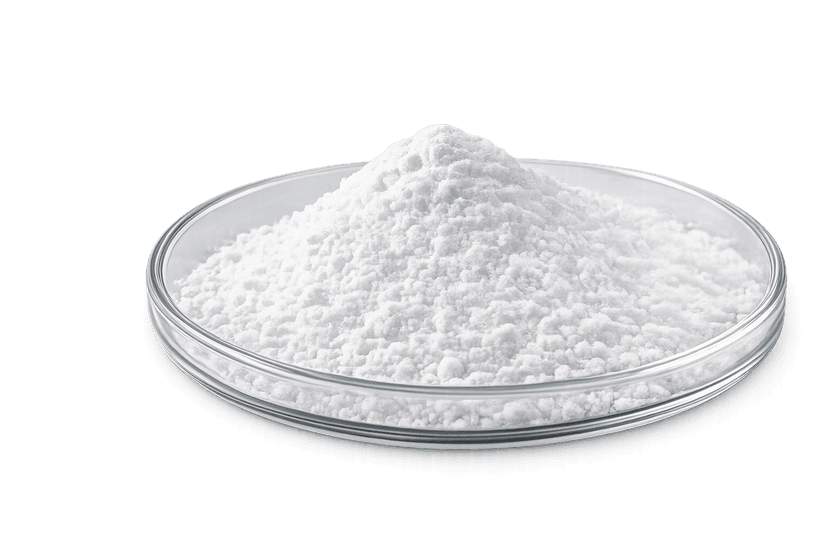

Micronized Pentaerythritol
Optimized for polyolefins & flexible polymers
PPPEEVATPU
Benefits
- Excellent dispersion in non-polar systems
- High LOI and UL94 V-0 performance
- Low density, minimal impact on compound formulation

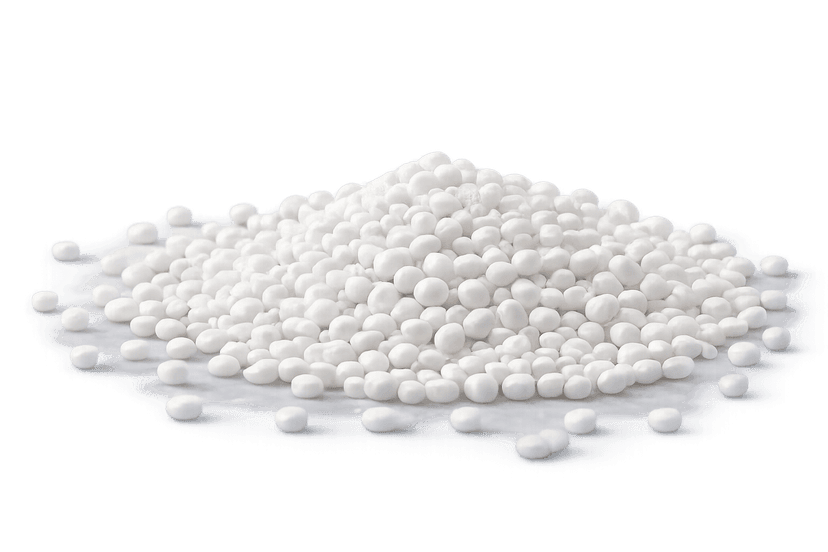

Dipentaerythritol
Engineered for engineering plastics
PAPBTPETOthers
Benefits
- High thermal stability (>280 C)
- Excellent compatibility with polar polymers
- High performance in thin-wall applications
Our Partners
Trusted performance across industries

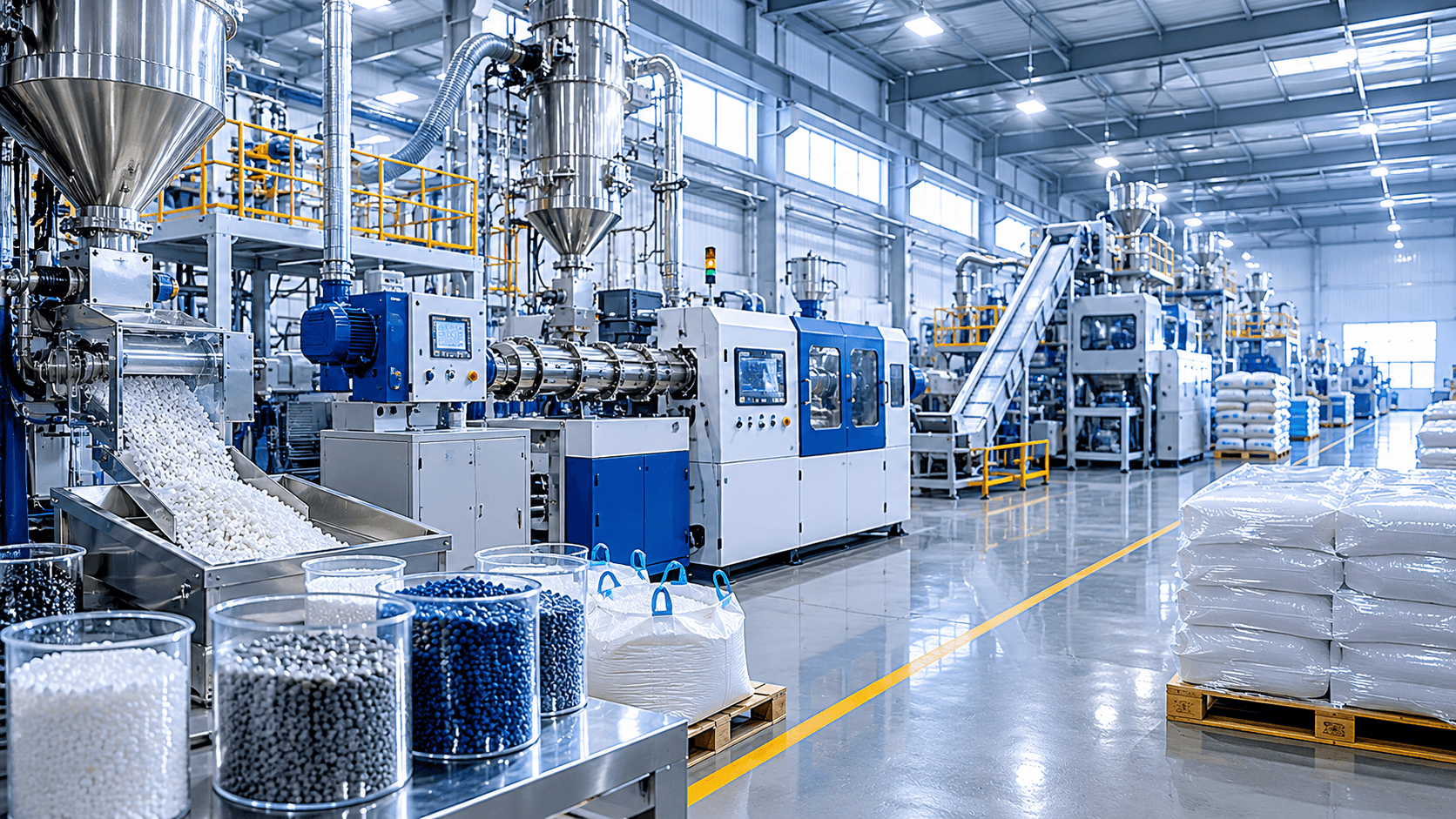

Modified Plastic Manufacturers
Uniform dispersion, consistent mechanical performance, and reliable UL94 V-0 compliance in every batch.
Plastic Compounders
Excellent thermal stability and fine particle distribution for smooth, efficient twin-screw compounding.

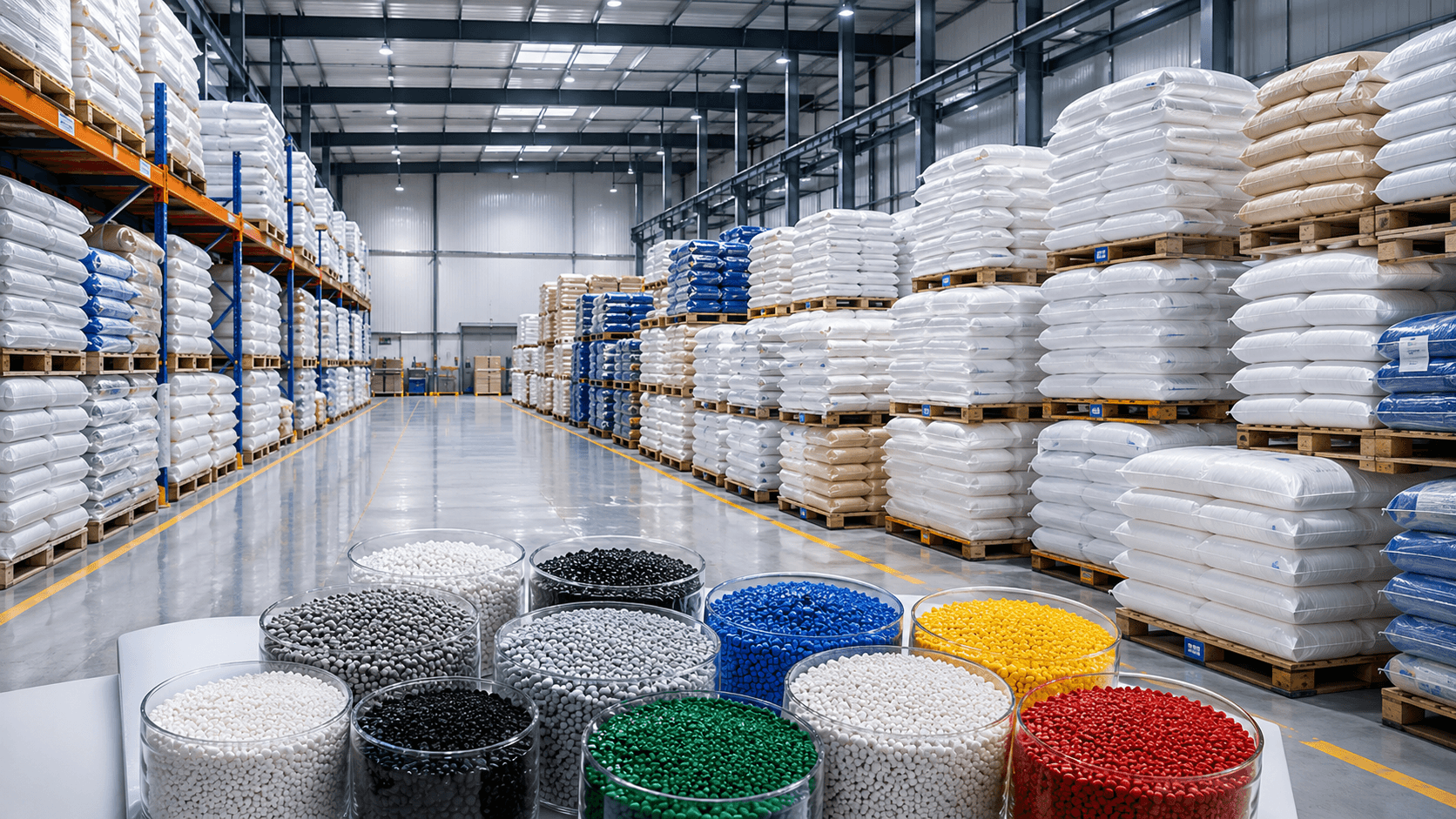

Injection Molding Material Suppliers
Low blooming, clean surface finish, and minimal defects for high-quality molded parts.
Inquiry Support
Tell Us Your Needs. We'll Get Back Within 12 Hours
Share your application and performance targets. Our technical team will provide the most suitable grade recommendation and support.
12-hour response promise (working days)
Application-focused recommendations
Confidentiality assured
